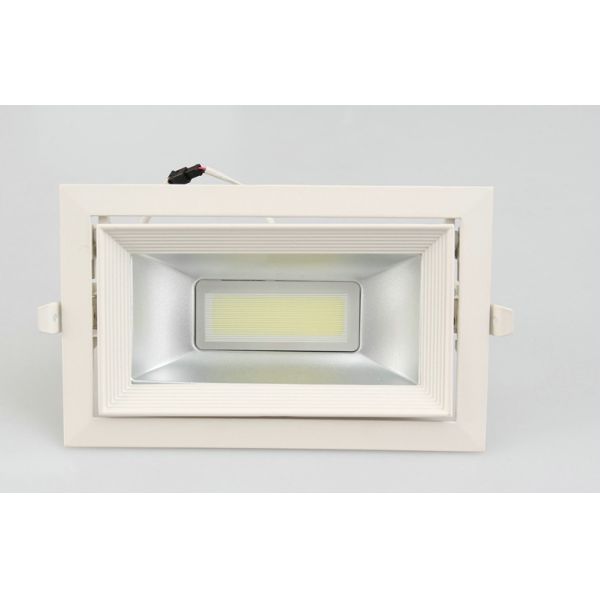

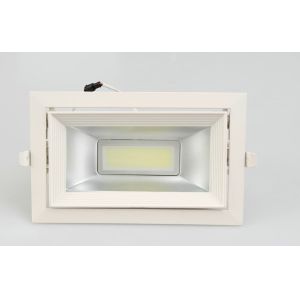

    30W/45W LED SPOTLIGHTS LSA103016 FOR DISPLAY LIGHTING

    Ask Lasest Price
    Brand Name : GPT
    Certification : CE, TUV
    Model Number : LSA103016
    Delivery Time : 5~7days for samples,25~30days for order production
    Payment Terms : T/T OR L/C
    Supply Ability : 30000PCS PER MONTH
    • Product Details
    • Company Profile

    30W/45W LED SPOTLIGHTS LSA103016 FOR DISPLAY LIGHTING

    Quick Detail:


    • Two different size, two different watt
    • Cob led ,PC ring, aluminum reflector, inner ring,spring clip and led Driver make the fitting is a good quality level product;
    • It’s suitable to use in hotel, home-lighting, recreation place, supermarket, office building
    • Model Number :LSA103016

    Description:


    • The led spotlights is made by cast-Aluminium, body with high power LED of long service life. with the CE, ROHS, TUV, SAA certification.
    • Wattage:30w/45w
    • Color temperature(k) : 3000K / 4200K / 6500K
    • Operating temperature:-25℃ ~ 50℃,10% ~ 90% R.H.
    • No heavy metals or harmful gases, environmental protection
    • Start fast, soft start , no harsh, no glare, good for eyes


    Applications:


    • This Product is in the category of "Spotlights" or "LED Spotlights ".
    • It can be used in following applications:

    Commercial Lighting,
    Hotel Lighting,
    Display Lighting


    Specifications:


    Data sheet

    Watt

    Dimmension

    Cut out

    30W

    235x136x146mm

    220x132mm

    45W

    235x146x98mm

    220x132mm



    Performance parameter


    lamp

    Warm white

    Natural white

    Cool ahite

    Lumen(lm)

    1600lm

    1720lm

    1850lm

    Color temperature(k)

    3000k

    4200k

    6500k

    CRI

    >70

    Type of LED

    COB LED

    Beam angle

    99º

    Decay rate(%)

    Less than 3%within 1000 working hours

    Total power(w)

    31-34W

    Lifespan(Hrs)

    ≧30000Hrs

    High voltage testing

    1750Vac/lmin


    LED

    Parameter


    Lighting efficiency


    100LM/W

    Chip quantity

    144PCS

    Series-parallel way

    12S12P

    voltage

    37-39VDC

    current

    850mA


    Driver parameter

    Input parameter

    100~240VAC,50/60Hz

    Power factor

    0.9

    Output parameter

    24-44VDC,850mA


    Structure

    parameter


    Material

    Cast-Aluminium

    Dimension

    235*146*139mm

    Cut-out

    220*132mm

    Protection class

    Calss 1

    IP

    IP20

    Environment parameter

    Operating temperature

    -25℃~50℃,10%~90% R.H.

    Storage temperature

    -30℃~85℃,0%~95% R.H.


    Competitive Advantage:


    • The LED Spotlights is applied with new led power, it’s a new product, the advantage compares to traditional spotlights is as below :
    • 1- ENERGY SAVING , same lumens power only 1/4 compares to traditional power;
    • 2- LOW CARBON, exclude mercury, it’s pollution-free for the environment.
    • 3- LONG LIFETIME, 50000hours, around 5 times than the traditional light.
    • 4- ECONOMIC: energy saving to get lower electricity, cost return back within 2years.
    • 5- Adjustable design make the products can be applied for many application.
    • 6- Easy to install, easy to operate
